# Knuckle Boom 4WD Diesel 16m with Outriggers Used in the construction, mechanical, engineering, electrical, painting industries to lift personnel and materials to a height where maximum stability, accessability and reach are required. Boom lift can be levelled on uneven or sloping ground. Purpose built machine designed to access virtually any workplace at height in a safe and productive way. Knucklebooms have the advantage of reaching up and over obstacles to get personnel and materials direct to the work area. Efficency is improved by the ability to drive while at full elevation. Added feature of outriggers allows the operator to work on more terrain than ever before. - **Item code:** 404T - **Category:** Access - **Subcategory:** Knuckle Booms ## Price Priced on application. Contact Hirepool for a quote. ## Specifications - **Make:** ATN - **Model:** Zebra16 - **Working height:** 16.8m - **Platform height:** 14.8m - **Safe working load:** 230kg - **Safe working load (extension):** N/A - **Platform width:** 0.86m - **Platform length:** 1.8m - **Platform length (extension):** N/A - **Stowed width:** 2.19m - **Stowed length:** 7.8m - **Stowed height:** 2.23m - **Weight:** 8050kg - **Horizontal reach:** 9.4m - **Gradeability:** 45% - **Ground clearance:** 0.4m - **Turnable rotation:** 360 deg - **Turnable tailswing:** Zero - **Maximum levelling ability front to back:** 9 deg - **Maximum levelling ability side to side:** 12 deg - **Fuel tank capacity:** 64 l - **Fuel consumption:** 7.2 l/hr - **CO2 Emission:** 18.5 kg/hr ## Safety ### Recommended safety equipment - **Hearing Protection**: To guard against excessive noise and prevent hearing loss, wear earplugs or ear muffs of the appropriate grade when using this equipment. - **Head Protection**: A safety helmet is required when operating this equipment to provide protection from overhead & moving/falling objects. Safety helmets with air muffs and full face visors are also available. Long/loose hair should be tied up or restrained with a hair net. - **Hand Protection**: Suitable hand protection appropriate to the specific hazards must be worn when using this equipment (e.g. PVC for chemicals, cotton fordirt and dust etc.) - **Foot Protection**: Firm footwear providing support for the foot and ankle is required with good tread allowing for solid grip on surfaces. Full safety boots should be considered for maximum foot protection. - **Safety Harness**: Full body safety harness complete with shock absorbing lanyard isrequired when operating this equipment. - **Operator Certification**: This is professional equipment that requires specialist instruction or a license to operate. - **Toxic Materials**: WARNING TOXIC GASES CAN BE HARMFULL OR FATAL. Engine/Heater exhaust gases are toxic: Do not operate in enclosed or confined spaces such as tanks, pits and other enclosed areas. Use only in well ventilated areas outside downwind from working site. ### Transport safety notes - **Delivery**: Hirepool can arrange delivery through our preferred specialised transport provider. To find out more on delivery costs please contact your local Hirepool in 0800 151515. - **Truck Mounted - Self Drive**: Equipment is truck mounted therefore only a hirer who holds the applicable drivers license may operate the vehicle. ## Related gear and accessories ### Recommended items - [Safety Harness (692C)](https://www.hirepool.co.nz/products/equipment/access/harnesses/692c-safety-harness.md): $34.63 for 4 hours - [Diesel per litre (DIESEL)](https://www.hirepool.co.nz/products/equipment/consumables/fuel/diesel-diesel-per-litre.md): $4.89 each - [Fuel container 20l (PC20)](https://www.hirepool.co.nz/products/equipment/consumables/containers/pc20-fuel-container-20l.md): included at no charge ## Documents and guides ### Instructions for use - [Elevated Work Platforms - Instructions For Use](https://www.hirepool.co.nz/instructions/elevated-work-platforms-instructions-for-use.md) ### Operators Manual - [Operators Manual - ATN Zebra16](https://www.hirepool.co.nz/media/1ehhbrfx/15-20191003083726_pts_316.pdf) ### Risk Assessment - [Risk Assessment - ATN Zebra16](https://www.hirepool.co.nz/media/dptjvb23/15-20191015111600_pts_370.pdf) ### Specifications Sheet - [Specifications Sheet - ATN Zebra16](https://www.hirepool.co.nz/media/girbaou3/6-20180219113212_pts_427.pdf) ### Videos - [Hirepool Cherry Picker Demonstration](https://www.youtube.com/watch?v=pmXfHfn9yF4) ## Delivery and pickup ### Delivery instructions - If you wish for this item to be delivered, please provide your information. - We aim to deliver within 2 hrs of your selected delivery time. - All deliveries and pickups must be in a safe area to unload, demonstrate the equipment and complete paperwork. - Any delivery amount displayed is 'one-way' and for one load only. - If multiple vehicles are required for delivery, we will contact you prior. ### Pickup your gear up? If you're coming to pick your gear up, please have the following information ready with you. - Make sure you have a form of ID on you. - We provide demonstration of the gear. Please set some time aside if you can. Full details, availability and branch pricing: https://www.hirepool.co.nz/products/equipment/access/knuckle-booms/404t-knuckle-boom-4wd-diesel-16m-with-outriggers

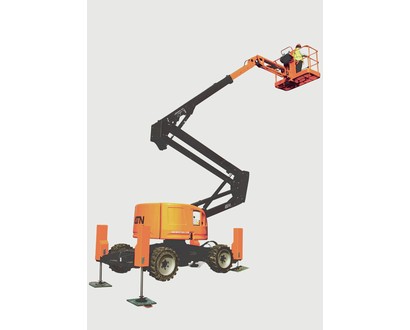

Knuckle Boom 4WD Diesel 16m with Outriggers
