# Scissor Lift 4WD Diesel Large Deck 18m Used in the construction, painting, cleaning industries, overhead lighting and plumbing industries. Film and television industry. Four wheel drive (4WD) capabilities offer a safe and efficient way for a variety of external applications without preparation of the ground within factiries, warehouses etc. Scissorlifts are used where less reach and height, but more work area and lifting capabilities are required. They are designed to provide larger platform work areas and generally allow for heavier loads to be carried compared with boom lifts. - **Item code:** 409F - **Category:** Access - **Subcategory:** Scissor Lifts ## Price Priced on application. Contact Hirepool for a quote. ## Specifications - **Make:** Various - **Model:** Various - **Working height:** 17.24 - 18.15m - **Platform height:** 15.24 - 16.15 - **Safe working load:** 680 - 681kg - **Safe working load (extension):** 227kg - **Platform width:** 1.83 - 1.88m - **Platform length:** 3.98 - 4.47m - **Platform length (extension):** 6.57 - 7.21m - **Stowed width:** 2.34 - 2.57m - **Stowed length:** 4.47 - 4.88m - **Stowed height:** 3.15 - 3.16m - **Weight:** 7407 - 8274kg - **Gradeability:** 25 to 40% - **Ground clearance:** 0.20 to 0.36m - **Maximum levelling abiltiy front to back:** 7 deg - **Maximum levelling abiltiy side to side:** 12 deg - **Fuel tank capacity:** 114 l - **Fuel consumption:** 7.2 l/hr - **CO2 Emission:** 18.5 kg/hr ## Safety ### Recommended safety equipment - **Hearing Protection**: To guard against excessive noise and prevent hearing loss, wear earplugs or ear muffs of the appropriate grade when using this equipment. - **Head Protection**: A safety helmet is required when operating this equipment to provide protection from overhead & moving/falling objects. Safety helmets with air muffs and full face visors are also available. Long/loose hair should be tied up or restrained with a hair net. - **Hand Protection**: Suitable hand protection appropriate to the specific hazards must be worn when using this equipment (e.g. PVC for chemicals, cotton fordirt and dust etc.) - **Foot Protection**: Firm footwear providing support for the foot and ankle is required with good tread allowing for solid grip on surfaces. Full safety boots should be considered for maximum foot protection. - **Safety Harness**: Full body safety harness complete with shock absorbing lanyard isrequired when operating this equipment. - **Operator Certification**: This is professional equipment that requires specialist instruction or a license to operate. - **Toxic Materials**: WARNING TOXIC GASES CAN BE HARMFULL OR FATAL. Engine/Heater exhaust gases are toxic: Do not operate in enclosed or confined spaces such as tanks, pits and other enclosed areas. Use only in well ventilated areas outside downwind from working site. ### Transport safety notes - **Truck**: A truck is the preferred transportation method for this equipment - **Delivery**: Hirepool can arrange delivery through our preferred specialised transport provider. To find out more on delivery costs please contact your local Hirepool in 0800 151515. ## Related gear and accessories ### Recommended items - [Safety Harness (692C)](https://www.hirepool.co.nz/products/equipment/access/harnesses/692c-safety-harness.md): $34.63 for 4 hours - [Diesel per litre (DIESEL)](https://www.hirepool.co.nz/products/equipment/consumables/fuel/diesel-diesel-per-litre.md): $4.89 each - [Fuel container 20l (PC20)](https://www.hirepool.co.nz/products/equipment/consumables/containers/pc20-fuel-container-20l.md): included at no charge ## Documents and guides ### Instructions for use - [Elevated Work Platforms - Instructions For Use](https://www.hirepool.co.nz/instructions/elevated-work-platforms-instructions-for-use.md) ### Operators Manual - [Operators Manual - Genie GS5390RT](https://www.hirepool.co.nz/media/i23dshjd/1-20160510081409_pts_45.pdf) - [Opertaors Manual - Skyjack SJ9250](https://www.hirepool.co.nz/media/xsobuqod/15-20191004132443_pts_368.pdf) - [Maintenance Manual - Sinoboom 1623RD Boomlift](https://www.hirepool.co.nz/media/gj5esrs1/maintenance-manual-1623rd.pdf) - [Operation Manual - Sinoboom 1623RD Boomlift](https://www.hirepool.co.nz/media/pi1fi4e4/operation-manual-1623rd.pdf) - [Operation Manual - Dingli SL1623RT Scissorlift](https://www.hirepool.co.nz/media/wzsni3ii/dingli-sl1623rt-operators-manual.pdf) ### Risk Assessment - [Risk Assessment - Genie GS5390RT](https://www.hirepool.co.nz/media/m33nim4o/1-20160602073702_pts_144.pdf) - [Risk Assessment - Sinoboom 1623RD Boomlift](https://www.hirepool.co.nz/media/adshkvxh/risk-assessment-sinoboom.pdf) ### Specifications Sheet - [Specifications Sheet - Genie GS5390RT](https://www.hirepool.co.nz/media/1p0njl1q/1-20160510081628_pts_45.pdf) - [Specifications Sheet - Skyjack SJ9250RT](https://www.hirepool.co.nz/media/lnvp1ssw/6-20180111195718_pts_7.pdf) - [Specification Sheet - Sinoboom 1623RD Boomlift](https://www.hirepool.co.nz/media/nnip4q3g/product-brochure-and-spec-sheet-1623rd.pdf) ### Guides and videos - [Advanced Gear Guide: Scissor Lifts](https://www.hirepool.co.nz/guides/trade/advanced-gear-guide-scissor-lifts.md) ### Videos - [Hirepool Scissor Lift Information](https://www.youtube.com/watch?v=oGdDcjP0Bgk) - [Hirepool Scissor Lift Demonstration](https://www.youtube.com/watch?v=HGh1ZW7zly8) ## Delivery and pickup ### Delivery instructions - If you wish for this item to be delivered, please provide your information. - We aim to deliver within 2 hrs of your selected delivery time. - All deliveries and pickups must be in a safe area to unload, demonstrate the equipment and complete paperwork. - Any delivery amount displayed is 'one-way' and for one load only. - If multiple vehicles are required for delivery, we will contact you prior. ### Pickup your gear up? If you're coming to pick your gear up, please have the following information ready with you. - Make sure you have a form of ID on you. - We provide demonstration of the gear. Please set some time aside if you can. Full details, availability and branch pricing: https://www.hirepool.co.nz/products/equipment/access/scissor-lifts/409f-scissor-lift-4wd-diesel-large-deck-18m

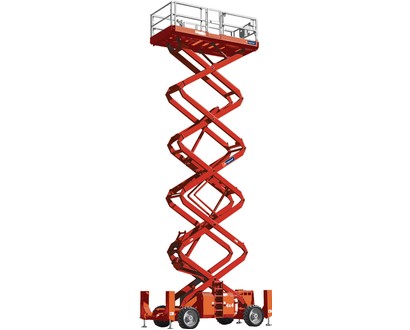

Scissor Lift 4WD Diesel Large Deck 18m

Product code: 409F

Not all products are available in all branches.

Scissor Lift 4WD Diesel Large Deck 18m (product code 409F) from Hirepool is priced on application. Contact Hirepool for a quote.

Book now
Enquire
{{ product.PriceOptions.OriginalFourHourRate | currency }} {{ product.PriceOptions.FourHourRate | currency }} {{product.RateTag}}
{{ product.PriceOptions.OriginalDayRate | currency }} {{ product.PriceOptions.DayRate | currency }} {{product.RateTag}}
{{ product.PriceOptions.OriginalWeekRate | currency }} {{ product.PriceOptions.WeekRate | currency }} {{product.RateTag}}
{{ product.PriceOptions.OriginalWeekRate | currency }} {{ product.PriceOptions.WeekRate | currency }} {{product.RateTag}}
{{ product.PriceOptions.WeekRate | currency }}
{{ product.PriceOptions.ListPrice | currency }}
Select hire period

OR

Login for trade rate
{{ user.TradeAccountName }} pricing
Switch account for other rates

OR

Login for trade rate

CHANGE BRANCH

Set your branch

For us to show you pricing, you need to select your local branch

Set branch
{{ currentBranch.BranchName }}
Change
Enter a postcode, suburb or region
Detect current location

OR

Login for trade rate
Branch
{{ currentBranch.BranchName }}
Change
Enter a postcode, suburb or region
Detect current location
Choose your hire period
Hire period
{{ label }}
{{ value | moment('D/M/YYYY') }}
{{ value | moment('h:mm A') }}
Change
{{ pickerTitle }}

Some branches are closed on Sunday.
{{ label }}
{{ value | moment('D/M/YYYY') }}
{{ value | moment('h:mm A') }}
Change
{{ pickerTitle }}

{{ hirePeriodAdjustedMessage }}

Enquire about this product

Enquire

{{errorMessage}}

Detect current location
{{ errorMessage }}

There are no branches matching your search.

Close
Specialist gear

This is professional equipment that requires specialist instruction or a licence to operate.

Recommended safety equipment

Hearing Protection
To guard against excessive noise and prevent hearing loss, wear earplugs or ear muffs of the appropriate grade when using this equipment.
Head Protection
A safety helmet is required when operating this equipment to provide protection from overhead & moving/falling objects. Safety helmets with air muffs and full face visors are also available. Long/loose hair should be tied up or restrained with a hair net.
Hand Protection
Suitable hand protection appropriate to the specific hazards must be worn when using this equipment (e.g. PVC for chemicals, cotton fordirt and dust etc.)
Foot Protection
Firm footwear providing support for the foot and ankle is required with good tread allowing for solid grip on surfaces. Full safety boots should be considered for maximum foot protection.
Safety Harness
Full body safety harness complete with shock absorbing lanyard isrequired when operating this equipment.
Operator Certification
This is professional equipment that requires specialist instruction or a license to operate.
Toxic Materials
WARNING TOXIC GASES CAN BE HARMFULL OR FATAL. Engine/Heater exhaust gases are toxic: Do not operate in enclosed or confined spaces such as tanks, pits and other enclosed areas. Use only in well ventilated areas outside downwind from working site.

Transport safety notes

Truck
A truck is the preferred transportation method for this equipment
Delivery
Hirepool can arrange delivery through our preferred specialised transport provider. To find out more on delivery costs please contact your local Hirepool in 0800 151515.
Description & safety information

Used in the construction, painting, cleaning industries, overhead;lighting and plumbing industries. Film and television industry. Four;wheel drive (4WD) capabilities offer a safe and efficient way for a;variety of external applications without preparation of the ground;within factiries, warehouses etc.;Scissorlifts are used where less reach and height, but more work area;and lifting capabilities are required. They are designed to provide;larger platform work areas and generally allow for heavier loads to be;carried compared with boom lifts.

Not sure if this is the right tool for what you need?

Don’t hesitate to call us on 0800 15 15 15 to chat to your local branch or just pop in. You can also email us here.

Specifications
Make:
Various
Model:
Various
Working height:
17.24 - 18.15m
Platform height:
15.24 - 16.15
Safe working load:
680 - 681kg
Safe working load (extension):
227kg
Platform width:
1.83 - 1.88m
Platform length:
3.98 - 4.47m
Platform length (extension):
6.57 - 7.21m
Stowed width:
2.34 - 2.57m
Stowed length:
4.47 - 4.88m
Stowed height:
3.15 - 3.16m
Weight:
7407 - 8274kg
Gradeability:
25 to 40%
Ground clearance:
0.20 to 0.36m
Maximum levelling abiltiy front to back:
7 deg
Maximum levelling abiltiy side to side:
12 deg
Fuel tank capacity:
114 l
Fuel consumption:
7.2 l/hr
CO2 Emission:
18.5 kg/hr
